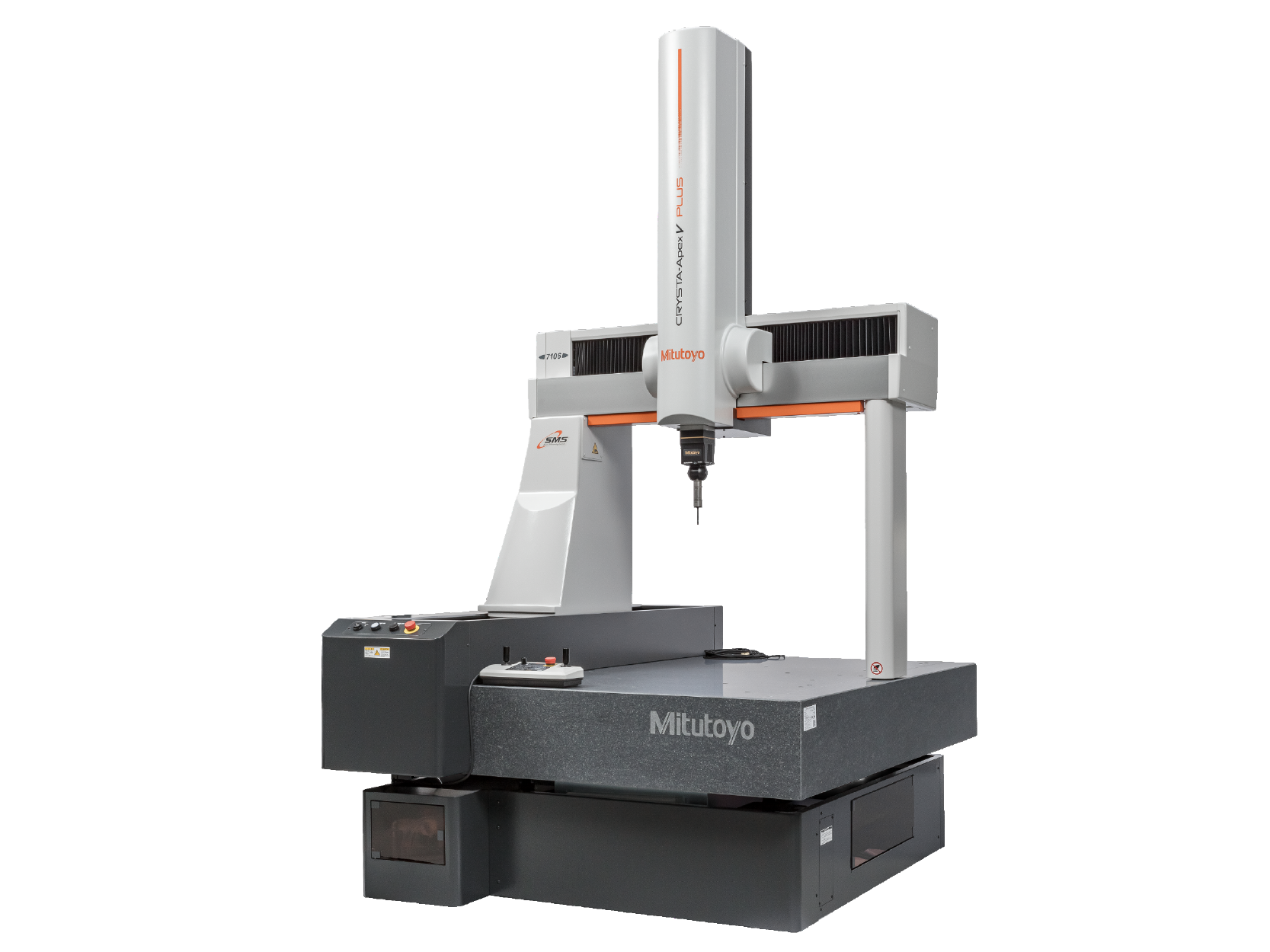

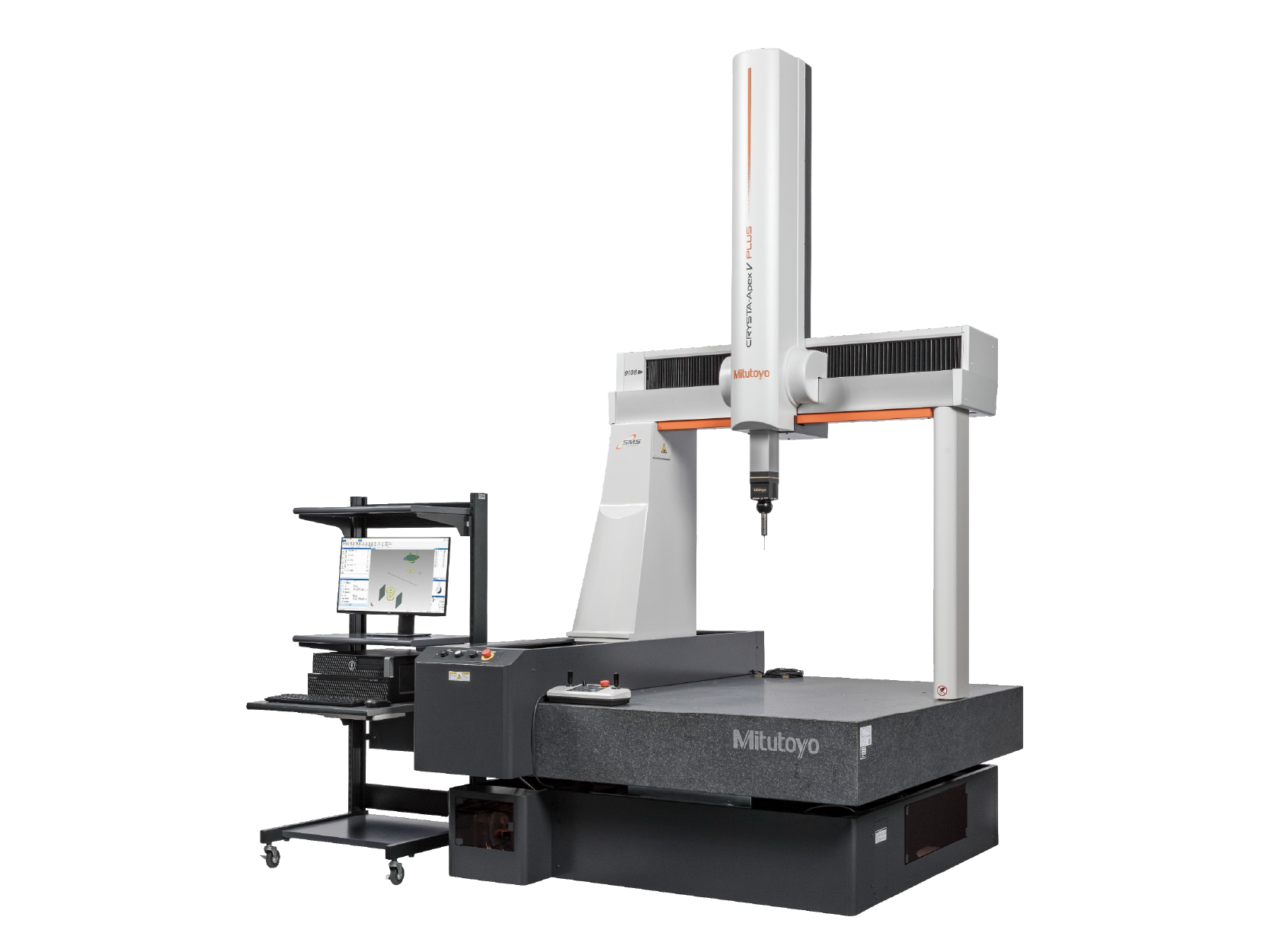

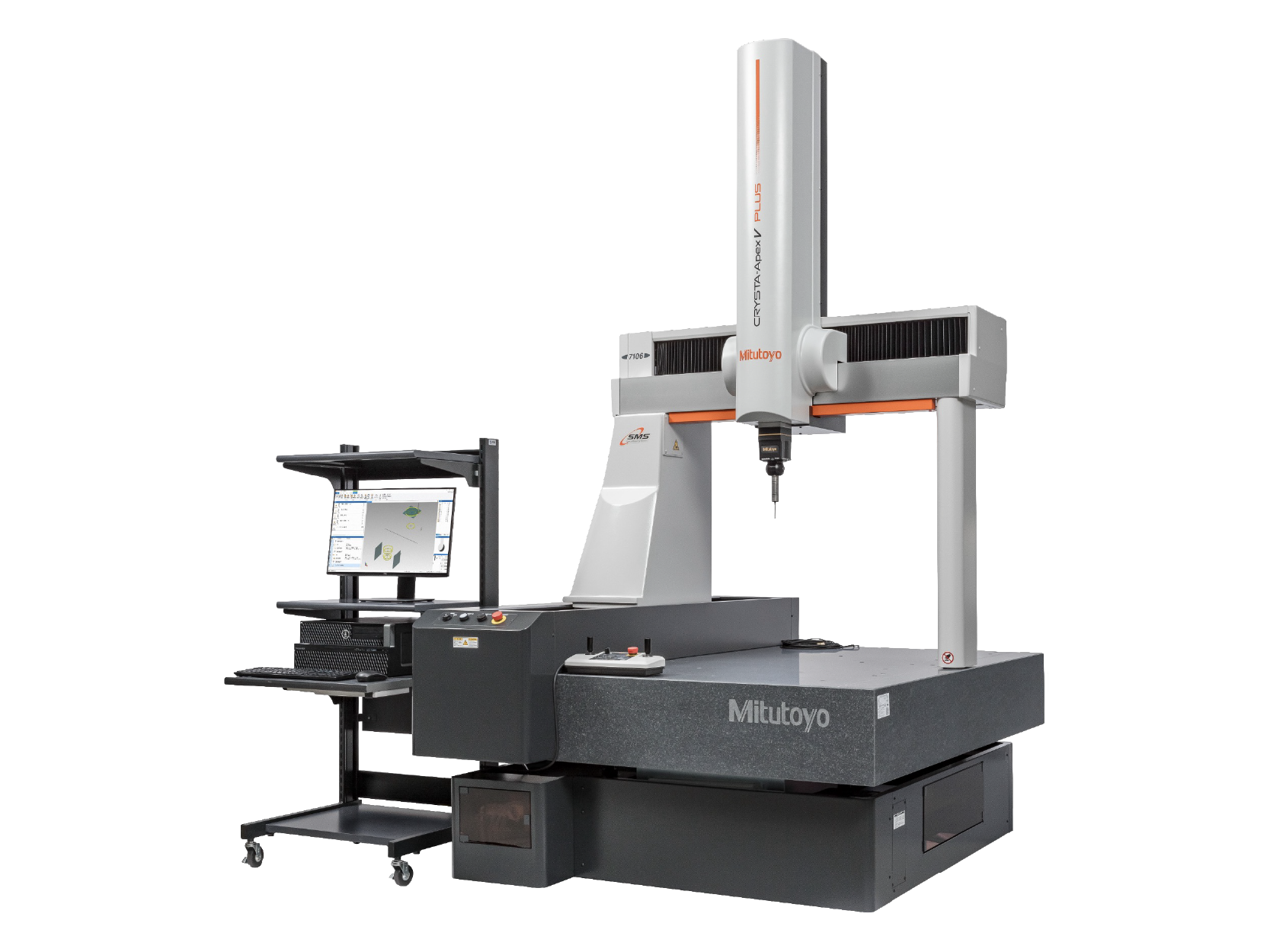

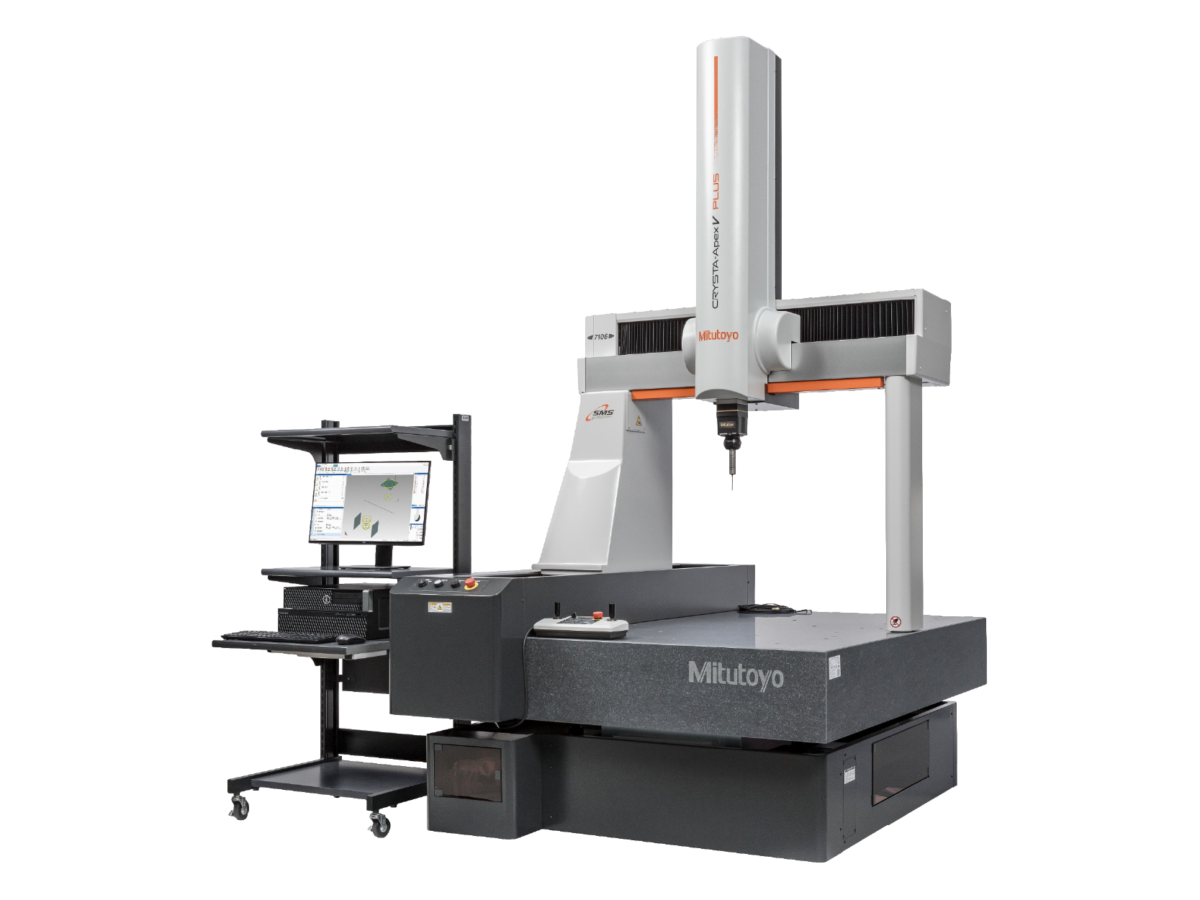

CRYSTA-Apex V PLUS

The highly versatile CRYSTA-Apex V PLUS series CNC Coordinate Measuring Machines deliver multi-sensor flexibility with vision, laser, surface finish, and scanning probe technologies—empowering manufacturers with fast, accurate, and adaptable measurement solutions.

Key Advantages:

  • Expanded accuracy-guaranteed temperature range from 15°C to 30°C, enabling reliable measurement even in real-world shop floor conditions.
  • Energy-saving design powers off servo motors and stops air consumption during standby, reducing operating costs while maintaining readiness.
  • Multi-sensor integration (vision, laser, surface finish, and scanning probe technologies) for flexible measurement of diverse part geometries.
Download Brochure

Request Demo | Support Request

Jump down to: Features & Benefits | Function | Product ListInquire

Features & Benefits

The CRYSTA-Apex V PLUS series is a new generation CNC CMM that delivers exceptional versatility and speed while leveraging IoT technologies for smart factory environments. Available in a size range of 400mm to 900mm (15.7″ to 35.43″), the CRYSTA-Apex V PLUS provides accuracy that surpasses any previous general-purpose measuring machine for small to mid-sized workpieces.

  • Key Features:
  • SMS (Smart Measuring System) – online monitoring and machine status visualization to drive product quality improvements
  • Real-time CMM and workpiece temperature compensation (standard feature)
  • Accuracy-guaranteed temperature range from 15°C to 30°C for reliable measurement in real-world environments
  • Energy-saving design – automatically powers off servo motors and halts air consumption during standby to reduce operating costs
  • High-speed optimal path scanning with advanced active scanning
  • Multi-sensor support with a wide array of contact and non-contact probes, including tactile, scanning, laser, optical, and surface finish measurement
Meet the Next Evolution in CMMs with the all new CRYSTA-Apex V PLUS
Function
TECHNICAL DATA
Technology: Coordinate Measuring Machine – CNC
Units: Inch,Metric
Resolution: 0.000004″ (0.0001mm)
Guide Method: Air bearing on each axis
Vibration Stand: Standard
Probe System: PH10MQ
Touch Trigger Probe: TP20, TP200
Scanning Probe: MPP, SP25, SP80
Laser Probe SurfaceMeasure
Optical Probe: QVP
Surface Roughness Probe: SurfTest
Product List
Order No.: Model: Range
X-Axis:		 Range
Y-Axis:		 Range
Z-Axis:		 Worktable
Size:		 Workpiece
Max Height:		 Workpiece
Max Load:		 Machine
Mass:		 Machine
Dimensions:		 Air
Supply:		 Air
Consumption:		 Air
Source:		 Probe System: Touch Trigger Probe: Optical
Probe:		 Accessories: Required Accessories: Optional Accessories:
191-131 CRYSTA-APEX V 544 PLUS 19.68"
(500mm)		 15.74"
(400mm)		 15.74"
(400mm)		 25.11 x 33.86"
(638 x 860mm)		 21.45"
(545mm)		 396lbs
(180kg)		 1,194 lbs.lbs
(542kgkg)		 42.60x46.88x86.02"
(1082x1191x2185mm)		 58PSI
(0.4MPa)		 1.76CFM
(50L/min)		 3.53CFM
(100L/min)		 PH20/PH10MQ TP20/TP200 QVP Accessories Accessories Accessories
191-133 CRYSTA-APEX V 574 PLUS 19.68"
(500mm)		 27.55"
(700mm)		 15.74"
(400mm)		 25.11 x 45.67"
(638 x 1160mm)		 21.45"
(545mm)		 396lbs
(180kg)		 1,523 lbs.lbs
(691kgkg)		 42.60x60.94x86.02"
(1082x1548x2185mm)		 58.0PSI
(0.4MPa)		 1.76CFM
(50L/min)		 3.53CFM
(100L/min)		 - - - Accessories Accessories Accessories
191-135 CRYSTA-APEX V776 PLUS 27.55"
(700mm)		 27.55"
(700mm)		 23.62"
(600mm)		 34.64 x 55.90"
(880 x 1420mm)		 31.49"
(800mm)		 1,763lbs
(800kg)		 3,990 lbs.lbs
(1810kgkg)		 57.87x66.92x107.48"
(1470x1700x2730mm)		 58PSI
(0.4MPa)		 2.11CFM
(60L/min)		 4.23CFM
(120L/min)		 PH20/PH10MQ TP20/TP200 QVP Accessories Accessories Accessories
191-137 CRYSTA-APEX V 7106 PLUS 27.55"
(700mm)		 39.36"
(1000mm)		 23.62"
(600mm)		 34.64 x 67.71"
(880 x 1720mm)		 31.49"
(800mm)		 2,204lbs
(1000kg)		 4,548 lbs.lbs
(2063kgkg)		 57.87x78.73x107.48"
(1470x2000x2730mm)		 58PSI
(0.4MPa)		 2.11CFM
(60L/min)		 4.23CFM
(120L/min)		 PH20/PH10MQ TP20/TP200 QVP Accessories Accessories Accessories
191-139 CRYSTA-APEX V9106 PLUS 35.43"
(900mm)		 39.36"
(1000mm)		 23.62"
(600mm)		 42.51 x 67.71"
(1080 x 1720mm)		 31.49"
(800mm)		 2,645lbs
(1200kg)		 4,997 lbs.lbs
(2267kgkg)		 65.74x78.73x107.48"
(1670x2000x2730mm)		 58PSI
(0.4MPa)		 2.11CFM
(60L/min)		 4.23CFM
(120L/min)		 PH20/PH10MQ TP20/TP200 QVP Accessories Accessories Accessories
191-141 CRYSTA-APEX V9166 PLUS 35.43"
(900mm)		 62.99"
(1600mm)		 23.62"
(600mm)		 42.51 x 91.33"
(1080 x 2320mm)		 31.49"
(800mm)		 3,306lbs
(1500kg)		 6,545 lbs.lbs
(2969kgkg)		 65.74x107.87x107.48"
(1670x2740x2730mm)		 58PSI
(0.4MPa)		 2.11CFM
(60L/min)		 4.23CFM
(120L/min)		 PH20/PH10MQ TP20/TP200 QVP Accessories Accessories Accessories
191-143 CRYSTA-APEX V 9206 PLUS 35.43"
(900mm)		 78.73"
(2000mm)		 23.62"
(600mm)		 42.51 x 107.08"
(1080 x 2720mm)		 31.49"
(800mm)		 3,968lbs
(1800kg)		 8,933 lbs.lbs
(4052kgkg)		 65.74x126.77x107.48"
(1670x3220x2730mm)		 58PSI
(0.4MPa)		 2.11CFM
(60L/min)		 4.23CFM
(120L/min)		 PH20/PH10MQ TP20/TP200 QVP Accessories Accessories Accessories
191-145 CRYSTA-APEX V9108 PLUS 35.43"
(900mm)		 39.36"
(1000mm)		 31.49"
(800mm)		 42.51 x 67.71"
(1080 x 1720mm)		 39.36"
(1000mm)		 2,645lbs
(1200kg)		 50,41 lbs.lbs
(2287kgkg)		 65.74x78.73x123.22"
(1670x2000x3130mm)		 58PSI
(0.4MPa)		 2.11CFM
(60L/min)		 4.23CFM
(120L/min)		 PH20/PH10MQ TP20/TP200 QVP Accessories Accessories Accessories
191-147 CRYSTA-APEX V 9168 PLUS 35.43"
(900mm)		 62.99"
(1600mm)		 31.49"
(800mm)		 42.51 x 91.33"
(1080 x 2320mm)		 39.36"
(1000mm)		 3,306lbs
(1500kg)		 6,611 lbs.lbs
(2999kgkg)		 65.74x107.87x123.22"
(1670x2740x3130mm)		 58PSI
(0.4MPa)		 2.11CFM
(60L/min)		 4.23CFM
(120L/min)		 PH20/PH10MQ TP20/TP200 QVP Accessories Accessories Accessories
191-149 CRYSTA-APEX V 9208 PLUS 35.43"
(900mm)		 78.74"
(2000mm)		 31.49"
(800mm)		 42.51 x 107.08"
(1080 x 2720mm)		 39.36"
(1000mm)		 3,968lbs
(1800kg)		 8,999 lbs.lbs
(4082kgkg)		 65.74x126.77x123.22"
(1670x3220x3130mm)		 58PSI
(0.4MPa)		 2.11CFM
(60L/min)		 4.23CFM
(120L/min)		 PH20/PH10MQ TP20/TP200 QVP Accessories Accessories Accessories
