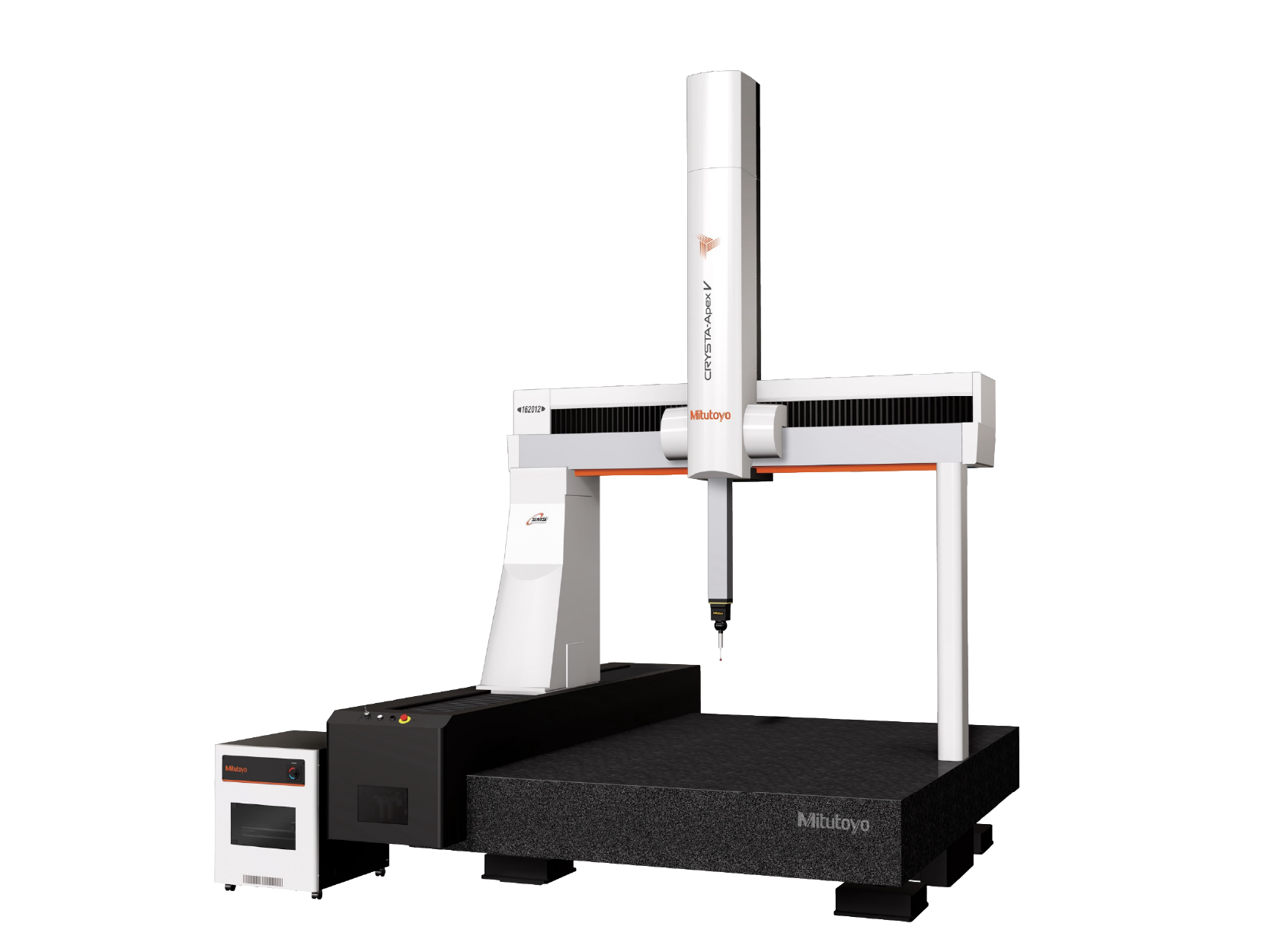

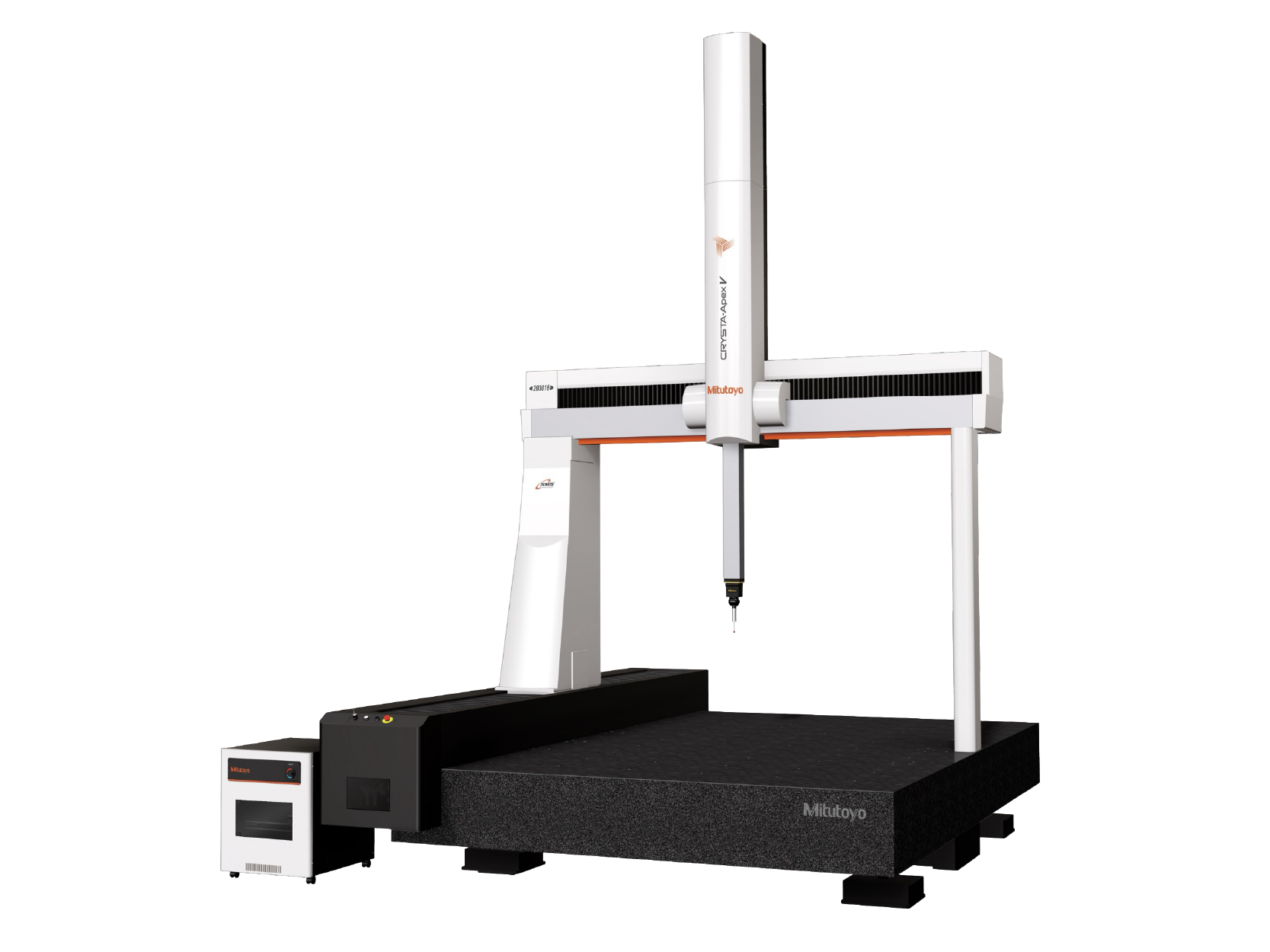

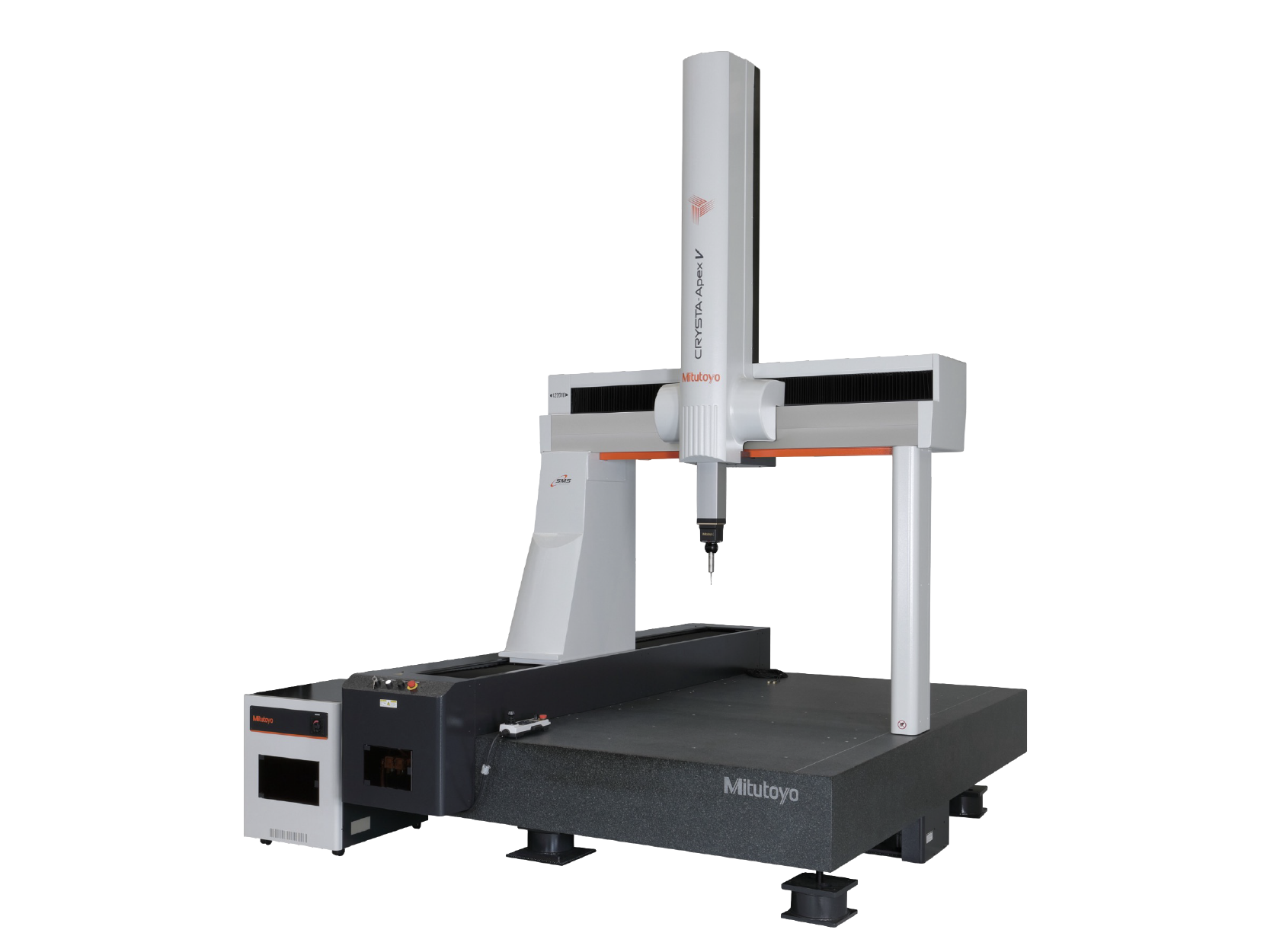

The highly versatile CRYSTA-Apex V series CNC Coordinate Measuring Machines deliver multi-sensor flexibility with vision, laser, surface finish, and scanning probe technologies—empowering manufacturers with fast, accurate, and adaptable measurement solutions. Designed for larger part applications, the 1200, 1600, and 2000 series models provide the measurement capacity needed for big, complex workpieces without sacrificing precision.
Features & Benefits
The CRYSTA-Apex V series is a next-generation CNC CMM that delivers exceptional versatility and speed while leveraging IoT technologies for smart factory environments. Designed for larger workpieces, the 1200, 1600, and 2000 models provide expanded measurement capacity with axis ranges of X: 1200mm to 2000mm (47.24″ to 78.74″), Y: 1200mm to 4000mm (47.24″ to 157.48″), and Z: 1000mm to 1600mm (39.37″ to 62.99″). This combination of size and precision makes the series ideal for industries such as aerospace, energy, and automotive, where large, complex components demand uncompromising accuracy.
Key Features:
- SMS (Smart Measuring System) – online monitoring and machine status visualization to drive product quality improvements
- Energy-saving design – automatically powers off servo motors and halts air consumption during standby to reduce operating costs
- High-speed optimal path scanning with advanced active scanning
- Multi-sensor support with a wide array of contact and non-contact probes, including tactile, scanning, laser, optical, and surface finish measurement
Technical Data
| Technology: | Coordinate Measuring Machine - CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.000004" (0.0001mm) |
| Guide Method: | Air bearing on each axis |
| Worktable Material: |
Granite |
| Worktable Tapped Inserts: | M8 x 1.25mm |
| Environment: | 64.4-71.6°F 18-22°C |
| Vibration Stand: | Optional |
| Scanning Probe: | MPP, SP25, SP80 |
| Laser Probe: | SurfaceMeasure |
| Surface Roughness Probe: | SurfTest |
Product List
| Order No.: | CMM Model: |
Range X-Axis: |
Range Y-Axis: |
Range Z-Axis: |
Worktable Size: |
Workpiece Max Height: |
Workpiece Max Load: |
Machine Mass: |
Machine Dimensions: |
Air Supply: |
Air Consumption: |
Air Source: |
Probe System: | Touch Trigger Probe: | Optical Probe: |
Accessories: | Required Accessories: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 191-481 | CRYSTA-APEX V121210 |
47.24" (1200mm) |
47.24" (1200mm) |
39.36" (1000mm) |
55.90 x 67.71" (1420 x 2165mm) |
47.24" (1200mm) |
4,409lbs (2000kg) |
8,928lbs (4050kg) |
86.61x102.16x143.50" (2200x2595x3645mm) |
1200PSI (8.27MPa) |
3.53CFM (100L/min) |
5.29CFM (150L/min) |
- | - | - | - | - | |
| 191-485 | CRYSTA-APEX V122010 |
47.24" (1200mm) |
78.74" (2000mm) |
39.36" (1000mm) |
55.90 x 116.73" (1420 x 2965mm) |
47.24" (1200mm) |
5,511lbs (2500kg) |
13,558lbs (6150kg) |
86.61x133.66x143.50" (2200x3395x3645mm) |
1200PSI (8.27MPa) |
3.53CFM (100L/min) |
5.29CFM (150L/min) |
- | - | - | - | - | |
| 191-489 | CRYSTA-APEX V123010 |
47.24" (1200mm) |
118.11" (3000mm) |
39.36" (1000mm) |
55.90 x 156.10" (1420 x 3965mm) |
47.24" (1200mm) |
6,613lbs (3000kg) |
20,084lbs (9110kg) |
86.61x173.03x143.50" (2200x4395x3645mm) |
1200PSI (8.27MPa) |
3.53CFM (100L/min) |
5.29CFM (150L/min) |
- | - | - | - | - | |
| 191-812H | CRYSTA-APEX 203016 |
78.74" (2000mm) |
118.11" (3000mm) |
62.99" (1600mm) |
86.61 x 165.55" (2200 x 4205mm) |
70.86" (1800mm) |
8,818lbs (4000kg) |
31,085lbs (14100kg) |
122.04x183.07x196.45" (3100x4650x4990mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
PH10MQ | TP200 | - | - | - | |
| 191-816H | CRYSTA-APEX 204016 |
78.74" (2000mm) |
157.47" (4000mm) |
62.99" (1600mm) |
86.61 x 204.92" (2200 x 5205mm) |
70.86" (1800mm) |
11,023lbs (5000kg) |
42,769lbs (19400kg) |
122.04x222.44x198.42" (3100x5650x5040mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
PH10MQ | TP200 | - | - | - | |
| 191-848 | CRYSTA-APEX 162012 |
62.99" (1600mm) |
78.74" (2000mm) |
47.24" (1200mm) |
70.86 x 126.18" (1800 x 3205mm) |
55.11" (1400mm) |
6,613lbs (3000kg) |
20,502lbs (9300kg) |
106.29x143.70x162.99" (2700x3650x4140mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-848H | CRYSTA-APEX 162012 |
62.99" (1600mm) |
118.11" (3000mm) |
47.24" (1200mm) |
70.86 x 126.18" (1800 x 3205mm) |
55.11" (1400mm) |
7,716lbs (3500kg) |
23,368lbs (10600kg) |
106.29x183.07x162.99" (2700x4650x4140mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-853 | CRYSTA-APEX 164012 |
62.99" (1600mm) |
157.47" (4000mm) |
47.24" (1200mm) |
70.86 x 126.18" (1800 x 3205mm) |
55.11" (1400mm) |
9,920lbs (4500kg) |
32,628lbs (14800kg) |
106.29x222.44x164.96" (2700x5650x4190mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-853H | CRYSTA-APEX 162016 |
62.99" (1600mm) |
78.74" (2000mm) |
62.99" (1600mm) |
70.86 x 126.18" (1800 x 3205mm) |
70.86" (1800mm) |
6,613lbs (3000kg) |
20,613lbs (9350kg) |
106.29x143.70x194.48" (2700x3650x4940mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-857 | CRYSTA-APEX 163016 |
62.99" (1600mm) |
118.11" (3000mm) |
62.99" (1600mm) |
70.86 x 126.18" (1800 x 3205mm) |
70.86" (1800mm) |
7,716lbs (3500kg) |
23,479lbs (10650kg) |
106.29x183.07x194.48" (2700x4650x4940mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-857H | CRYSTA-APEX 164016 |
62.99" (1600mm) |
157.47" (4000mm) |
62.99" (1600mm) |
70.86 x 126.18" (1800 x 3205mm) |
70.86" (1800mm) |
9,920lbs (4500kg) |
32,738lbs (14850kg) |
106.29x222.44x196.45" (2700x5650x4990mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - |
