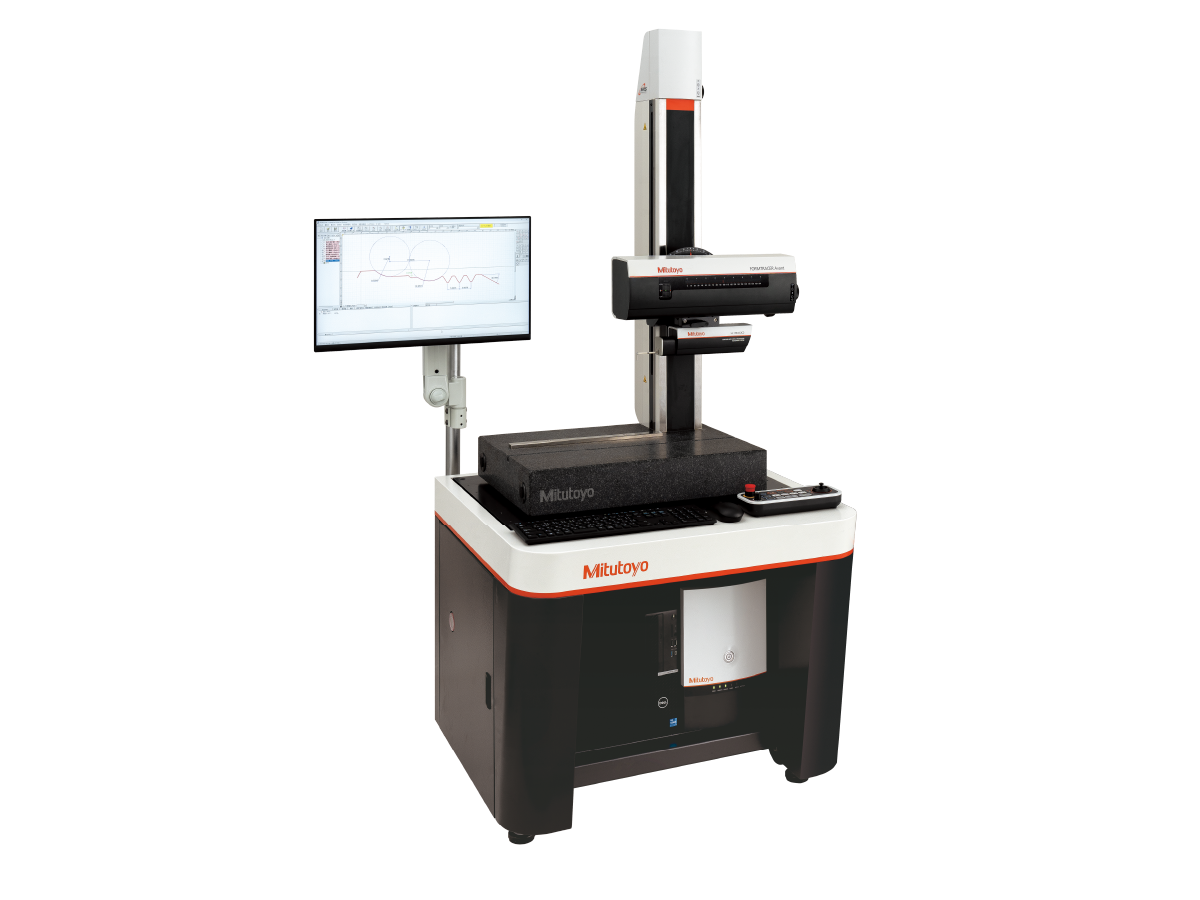

FTA-H3000 – Contour and Surface Roughness in One Measurement Trace

When it comes to detail and functionality, the FORMTRACER Avant H-3000 innovates form measurement with easier operability, greater accuracy, and more powerful, time-saving functions and features.

• Hybrid Precision, Zero Downtime – The H-3000 Detector allows for contour and surface roughness measurements in one trace , and can be swapped out without powering down the system.
• Complete Data with One Measurement Trace – The detector has both a wide measurement range and high resolution, allowing contour and surface roughness to be evaluated efficiently and with high accuracy in a single measurement.
• Unprecedented Accuracy – A newly developed arc scale helps the FTA H-3000 obtain even better precision and accuracy. For lens measurements, the detector achieves high-accuracy and high-resolution shape measurement, allowing accurate and precise evaluation of PV values.
• Remarkably Improved Workability – The drive unit inclines up to 45 degrees easily measure inclined surfaces without using a jig.
• Improved Stylus Speed – The retraction speed of the stylus is approximately 2x to 3x faster than conventional models, while the stylus speed for contact has been slowed in consideration of measurement safety.
• Improved Design – The system incorporates a cable-less design, allowing part set-up without concern for obstructions and snagging on unprotected detector cables.
• Beyond Normal Measurements – The best-in-class 2-axis measurement range can be increased using optional extra-length styli.

Applications

• Lens Measurement: Lens measurements require a high level of shape accuracy to achieve the necessary optical performance. The H-3000 detector achieves high-accuracy and high-resolution shape measurement and supports analysis of surface roughness and various dimensional analysis functions.

• Bearing Measurement: Bearing rings are required to have a shape and surface roughness that will allow the lubricating oil to work as an effective preventive measure against seizure and wear. The H-3000 detector can evaluate both contour and surface roughness efficiently and with high accuracy in a single measurement.
