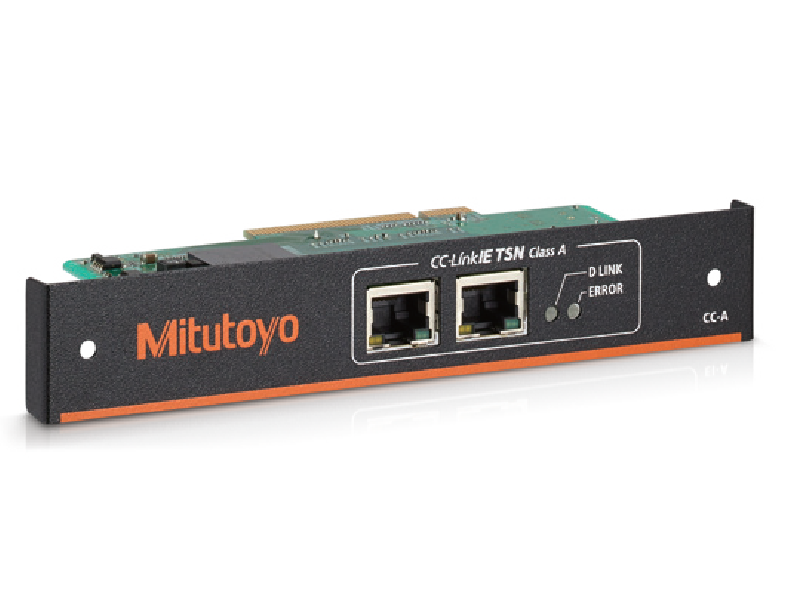

The LSM-CC-A is an interface module specifically designed for integration with the LSM-CU-A controller. This version features a CC-Link industrial interface, allowing you to seamlessly match your production line requirements. The module’s design facilitates easy insertion without the need to alter your existing controller layout. Other interface types (PROFINET, EtherCAT, and EtherNet/IP) are available as alternative modules to suit various automation standards.
Features & Benefits
This LSM-CC-A module provides a CC-Link industrial interface for the LSM-CU-A controller, ensuring flexible communication without altering the existing layout.
- Controller design allows for module insertion without altering the layout.
- 2 x RJ45 100Mbps Full duplex
- Cat. 5e or higher
Function
Specifications
| Order No. |
02AGQ390
|
||
| Model |
LSM-CC-A
|
||
| Communication standards |
CC-Link IE TSN
|
||
| Interface | LED |
D Link: Dual Color LED1 (red/green)
|
|
|
ERROR: Single Color LED1 (red)
|
|||
| RJ45 connector |
2 channels
|
||
| Ethernet communication | Communication port |
RJ45×2
|
|
| Communication speed |
100 Mbps Full duplex
|
||
| Cable used |
Cat 5e or more STP cable
|
||
| CC-Link IE TSN function | CC-Link IE TSN |
Class A remote station
|
|
| Min. cycle time |
1 msec
|
||
Common specifications
| Operating environment |
Temperature: 0 °C to 50 °C, Humidity: 20 %RH to 85 %RH (non-condensing)
|
| Storage temperature |
Temperature: -10 °C to 60 °C, Humidity: 35 %RH to 85 %RH (non-condensing)
|
| CE Marking/UKCA Marking |
EMC Directive: EN IEC 61326-1
|
|
Immunity test requirements: Clause 6.2 Table 2
|
|
|
Emission limit: Class A
|
|
|
RoHS Directive: EN IEC 63000
|
