LSM-9506

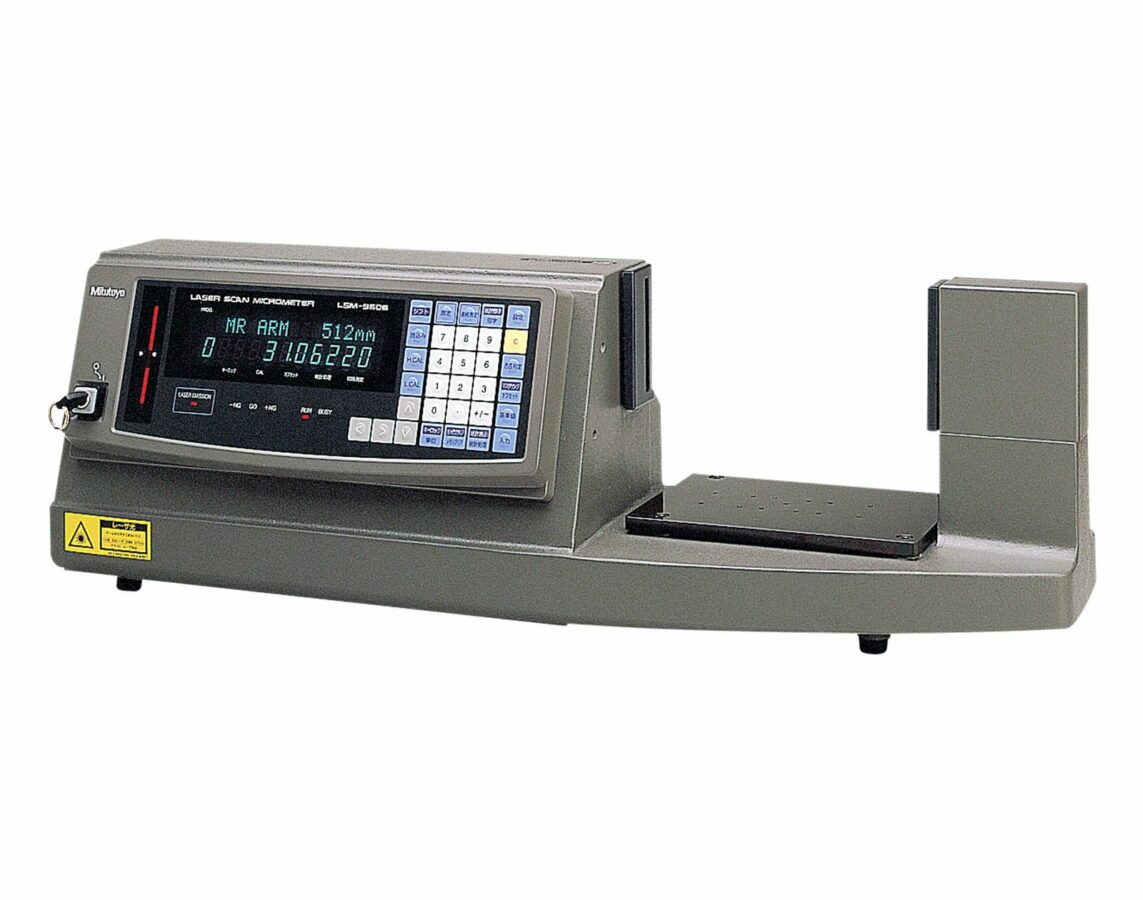

The compact design of the Mitutoyo bench top LSM-9506 series with built-in display provides ease of use and offers portability in the shop or lab.

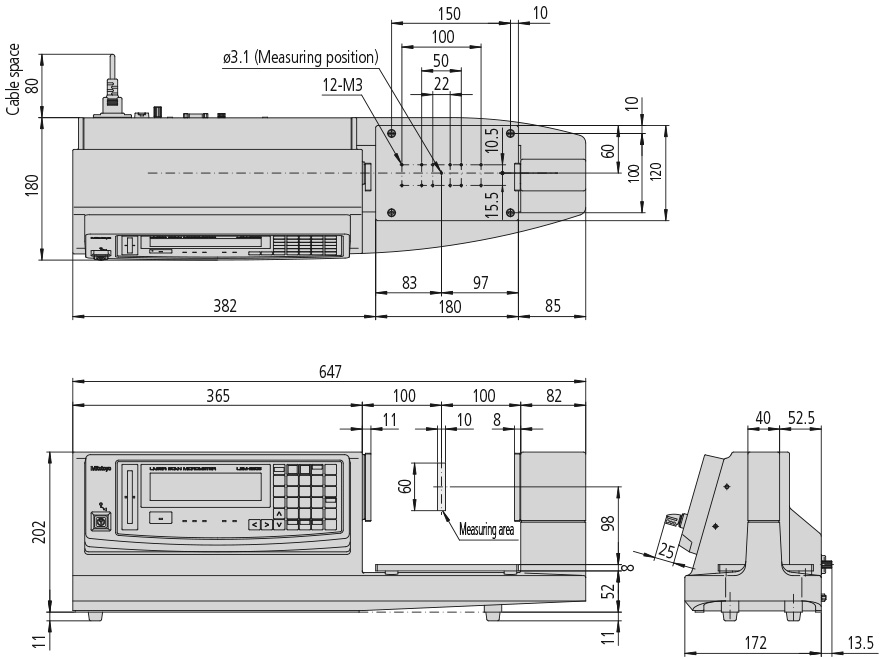

Download Brochure View Dimensions
Features & Benefits

The bench-top type Mitutoyo LSM-9506 Laser Scan Micrometer with integrated display is ideal for quality control, providing the same accuracy as hand micrometers, but at faster speeds. The LSM-9506 offers excellent gage repeatability and reproducibility by automatically measuring a workpiece after it is positioned in optional V-blocks or a workstage.

  • Digimatic output capabilities allow measurements to import into Microsoft Excel™ spreadsheets or data management software such as Mitutoyo MeasurLink®
  • Integrated digital display is easy to read and offers faster, more reliable measurements
  • The durable, compact design offers portability to relocate to areas where non-contact measurements of small workpieces are needed
PRODUCT LIST
Order No.: Product Image: Laser Classification: Applicable Laser Standards: Laser Wavelength: Operating Humidity Condition Range: Operating Temperature Range: Scanning Rate: User's manual: Accuracy: Averaging Method: Display: Standard Interface: Optional Interface: Judgement Options: Laser Scanning Speed: Max Range: Min Resolution: Max Resolution: Resolution Range: Measurement Modes: Measuring Range: Measuring Area: Min Range: Positional Error: Power Supply: Repeatability: Type: Optional Accessories: Required Accessories:
544-116-1A - Visible (650nm), IEC Class 2/FDA Class II IEC, FDA 650 nm / 8900 in/s RH35 to 85% (no condensation) 0 to 40˚C 3200 scans/second English ±0.0001" / ±2.5µm Arithmetic average: 8 to 2048 scans. Moving average: 32 to 2048 scans 16-digit dot matrix (upper column) + 7 segment 11-digit (lower column), guidance LEDs RS-232C, Digimatic code output unit (1ch) No Select from target value+tolerance, lower & upper tolerance, or 7 step multi-limit tolerance zones 226 m/s 2.36" /60mm 0.000002" / 0.00005mm 0.005" / 0.1mm 0.000002-0.005" / 0.00005-0.1mm Standby, single measurement continuous measurements 0.02-2.36" / .05-60mm ±0.2x2.36" / ±5x60mm 0.02" / 0.5mm ±0.0001" / ±2.5µm 120 V AC ±10%, 40VA, 60Hz ±0.00003" / ±0.6µm Inch/mm -
