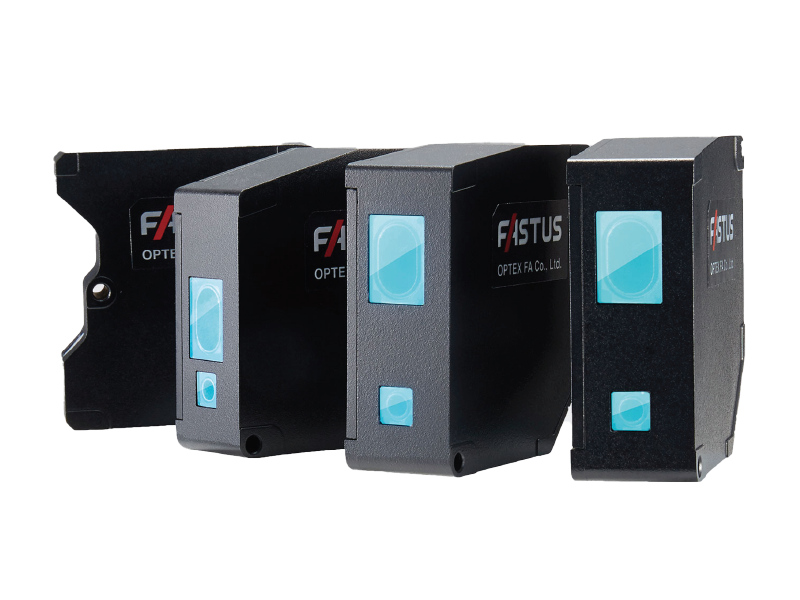

The CDX Series delivers industry-leading accuracy backed by decades of optical expertise. Combining ultra-high precision with intuitive operation, it features a built-in web server and direct Ethernet connectivity for effortless integration. Engineered for speed, safety, and reliability, CDX sensors set the standard for modern measurement solutions.
Features & Benefits
- Achieves world-class precision with ±0.015% F.S. linearity for ultra-accurate measurements.
- Neo LD Lens design minimizes aberration, ensuring consistent accuracy on complex surfaces.
- ATMOS image sensor enables real-time measurement without feedback delays for stable performance.
- Ultra-fast sampling at 12.5 μs supports high-speed production and dynamic applications.
- Built-in web server allows easy setup and monitoring through any browser
Function
| Model/Spec | CDX-L15A | CDX-LW15A | CDX-30A | CDX-W30A | ||
|---|---|---|---|---|---|---|
| Optical method / Order No. | Specular reflection (64PMI283) |
Specular reflection (64PMI284) |
Diffuse installation (64PMI285) |
Specular installation (Contact sales) |
Diffuse installation (64PMI276) |
Specular installation (Contact sales) |
| Measurement range *¹ | 15 ±1 mm | 15 ±1 mm | 30 ±5 mm | 25.5 ±3.0 mm | 30 ±5 mm | 25.5 ±3.0 mm |
| Medium | Red semiconductor laser | |||||
| Light source Wavelength | 655 nm | |||||
| Maximum output | 0.39 mW | |||||
| Laser class (JIS/IEC) | CLASS 1 | |||||
| Laser class (FDA *²) | CLASS 1 | |||||
| Spot size *³ | Ø30 μm | 30 x 1000 μm | Ø30 μm | Contact sales | 30 x 1000 μm | Contact sales |
| Linearity | ±0.05% of F.S. (±1 μm) | ±0.05% of F.S. (±1 μm) | ±0.03% of F.S. (±3 μm) | ±0.04% of F.S. (±2.4 μm) | ±0.015% of F.S. (±1.5 μm) | ±0.04% of F.S. (±2.4 μm) |
| Resolution *⁴ | 0.25 μm | |||||
| Repeat accuracy *⁵ | 0.25 μm | |||||
| Sampling period | 12.5 μs / 25 μs / 50 μs / 100 μs / 200 μs / 500 μs / 1 ms / Auto | |||||
| Temperature drift -10 to +40°C | ±0.02% F.S./°C | ±0.03% F.S./°C | ±0.01% F.S./°C | ±0.02% F.S./°C | ||
| Temperature drift +40 to +50°C | ±0.03% F.S./°C | ±0.1% F.S./°C | ±0.03% F.S./°C | ±0.04% F.S./°C | ||
| Weight | Approx. 300 g (including 500 mm connector cable) | Approx. 280 g (including 500 mm connector cable) | Approx. 280 g (including 500 mm connector cable) | |||
| Model/Spec | CDX-85A | CDX-W85A | CDX-150A | CDX-W150A | ||
|---|---|---|---|---|---|---|
| Optical method / Order No. | Diffuse installation (64PMI286) |
Specular reflection (Contact sales) |
Diffuse installation (64PMI287) |
Specular installation (Contact sales) |
Diffuse installation (64PMI288) |
Diffuse installation (64PMI289) |
| Measurement range *¹ | 85 ±20 mm | 81.5 ±10.0 mm | 85 ±20 mm | 81.5 ±10.0 mm | 150 ±40 mm | 150 ±40 mm |
| Medium | Red semiconductor laser | |||||
| Light source Wavelength | 655 nm | |||||
| Maximum output | 0.39 mW | |||||
| Laser class (JIS/IEC) | CLASS 1 | |||||
| Laser class (FDA *²) | CLASS 1 | |||||
| Spot size *³ | Ø70 μm | Ø70 μm | 70 x 2000 μm | Ø120 μm | 120 x 4000 μm | |
| Linearity | Meas. range 65 to 85 mm: ±0.018% of F.S. (±7.2 μm) Meas. range 85 to 105 mm: ±0.03% of F.S. (±12 μm) |
±0.03% of F.S. (±6.0 μm) | ±0.015% of F.S. (±6.0 μm) | ±0.03% of F.S. (±6.0 μm) | Meas. range 110 to 150 mm: ±0.03% of F.S. (±24 μm) Meas. range 150 to 190 mm: ±0.04% of F.S. (±32 μm) |
±0.015% of F.S. (±12 μm) |
| Resolution *⁴ | 0.3 μm | |||||
| Repeat accuracy *⁵ | 0.3 μm | |||||
| Sampling period | 12.5 μs / 25 μs / 50 μs / 100 μs / 200 μs / 500 μs / 1 ms / Auto | |||||
| Temperature drift -10 to +40°C | ±0.01% F.S./°C | |||||
| Temperature drift +40 to +50°C | ±0.03% F.S./°C | |||||
| Weight | Approx. 280 g (including 500 mm connector cable) | |||||
