Linear Gage LGS: General Purpose, Digital/ABS Sensor

The Mitutoyo ABSOLUTE LGS Linear Gage offers the ability to maintain the reference point even when the power is switched off and with the IP-66 rating the gage is protected against dust and water.

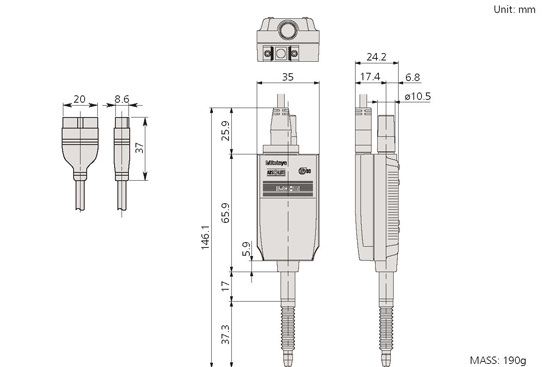

Download Brochure View Dimensions
Features & Benefits

The LGS series outputs data in a Digimatic format to a document and determines values connected to Digimatic data processing units and interfaces. The LGS gage is ideal for installation in automation applications, machines and the factory floor.

  • ABSOLUTE electrostatic capacitance type encoder makes it possible to maintain the reference point even when the power is switched off
  • Range: 10mm (.4”)
  • Resolution: 10μm / .0005”
  • IP66 rating provides protection against coolant, oil and dust resistance



TECHNICAL DATA
IP Rating: IP66
Operating Humidity Condition Range: RH20 to 80% (no condensation)
Operating Temperature Range: 0 to 40˚C
Storage Humidity Range: RH 20 to 80% (no condensation)
Storage Temperature Range: -10 to 60˚C
Bearing Type: Slide bearing
Connecting Cable: 2m
Connection: Standard 10 pin Digimatic connector
Mass: 190g
Max Measuring Force Upward: 1.6N
Max Measuring Force Horizontal: 1.8N
Max Measuring Force Downward: 2N
Position Detection Method: Absolute electrostatic capacitance linear encoder
Max Response Speed: Unlimited
Output: Digimatic
Resolution: 0.0005" / 0.01mm
PRODUCT LIST
Order No.: Product Image: Accuracy: Contact Point: Stem Diameter: Measuring Range: Remarks: Optional Accessories:
575-303 - - 901312 8mm 0.4" / 10mm - -
575-313 - 0.0008" 21BZB005 0.375" 0.5" / 12.5mm - -
575-314 - 0.0008" 21BZB005 0.375" 0.5" / 12.5mm Reverse reading -
