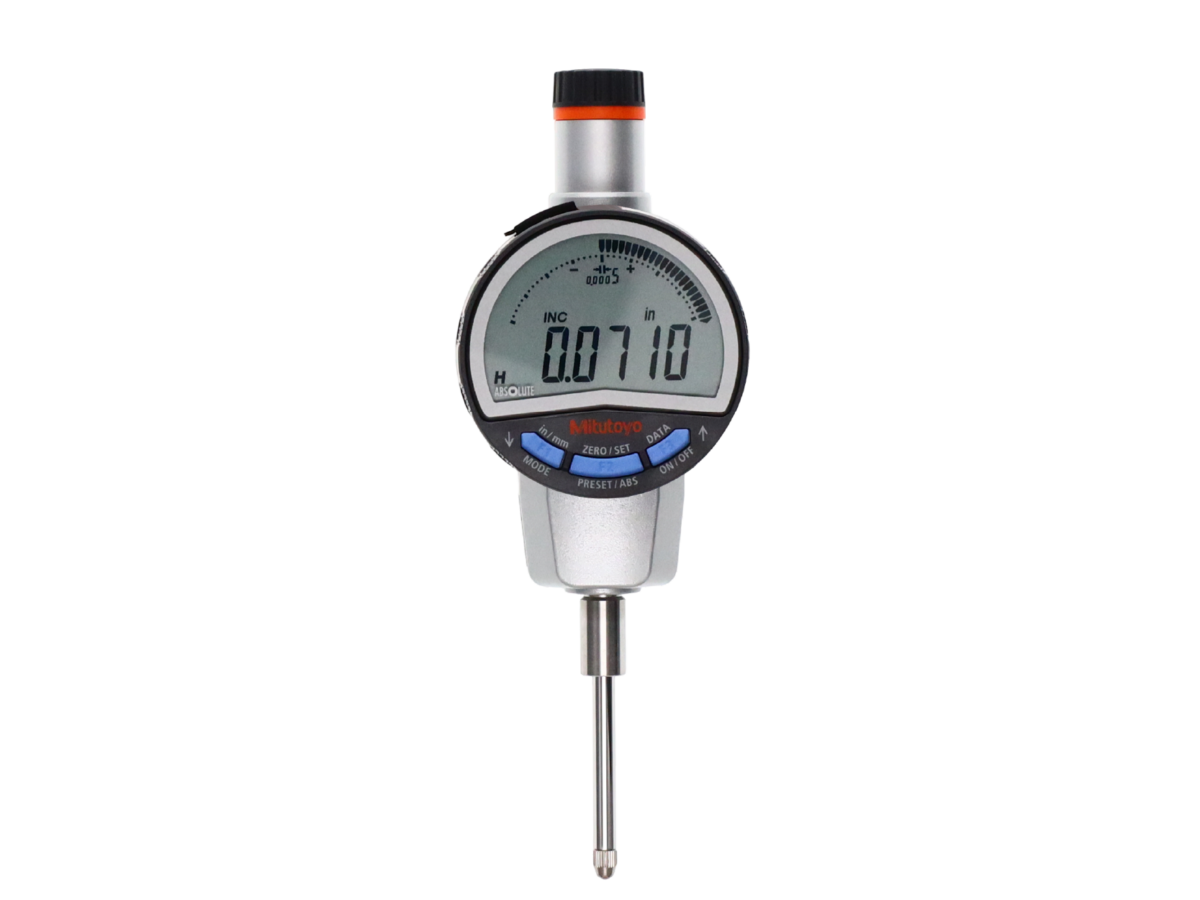

The Mitutoyo high-performance ABS Digimatic ID-C indicators deliver advanced bidirectional PC communication and precise resolution switching for smooth inspection workflows. Measurements are displayed on an enhanced, high-readability screen featuring a smooth analog tracking bar.
Features & Benefits
- Bidirectional Serial Communication (Digimatic S1): The unit supports advanced bidirectional serial communication. When connected to a PC via USB-ITPAK V3.0 software, you can perform batch zero-setting, control power ON/OFF, and configure or copy gauge settings remotely.
- High-Resolution Models: The lineup includes models offering a high resolution of 0.0005 mm / 0.00002 in, featuring resolution-switching capabilities.
- Excellent Readability: Features a large screen display with character sizes enlarged about 1.5 times compared to previous models. It also includes an analog bar scale convenient for observing subtle movements and tolerance approaches.
- Calibration Schedule Warning: Helps avoid missing pending calibrations by allowing operators to set a reminder date. A notification icon blinks before the due date, and the entire screen blinks if the calibration date is exceeded.
- Three Large Customizable Buttons: Improves ease of use by allowing operators to freely assign frequently used functions to three large buttons on the face of the indicator.
- Simple Calculation Function: Displays the result of the spindle movement value multiplied by a user-selected calculation coefficient in real time, which reduces manual work when measuring with a jig.
- Absolute (ABS) Linear Encoder: Employs an electrostatic capacitance type absolute linear encoder that ensures there is no response speed limit during measurement operations.
- Flexible Display Rotation: The display housing can rotate 330 degrees, allowing for easy reading from multiple mounting angles.
- Comprehensive Parameter Settings: Supports counting direction switching, tolerance judgment function setting, function lock, data hold/output, and switching between ABS (presetting) and INC (zero-setting) modes.
- Long Battery Life & Industrial Protection: Delivers approximately 2.5 years of battery life under normal use from a single CR2032 lithium battery, with a body protection rating equivalent to IP-42 dust and water resistance.
Product List
| Order No.: | Units: | Max Range: | Resolution: | Selectable resolution: | Accuracy: | Thread type: | Measuring Force: | Back Type: | ANSI/AGD type: | ISO/JIS type: |
|---|---|---|---|---|---|---|---|---|---|---|
| 543-700-02 | Metric | 12.7mm | 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | M2.5 X 0.45 | 1.5 or lessN | Lug Back | - | Yes |
| 543-700B-02 | Metric | 12.7mm | 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | M2.5 X 0.45 | 1.5 or lessN | Flat Back | - | Yes |
| 543-701-02 | Inch | 0.5" / 12.7mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | M2.5 X 0.45 | 1.5 or lessN | Lug Back | - | Yes |
| 543-701B-02 | Inch | 0.5" / 12.7mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | M2.5 X 0.45 | 1.5 or lessN | Flat Back | - | Yes |
| 543-702-02 | Inch | 0.5" / 12.7mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.00012" | 4-48 UNF | 1.5 or lessN | Lug Back | Yes | - |
| 543-702B-02 | Inch | 0.5" / 12.7mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.00012" | 4-48 UNF | 1.5 or lessN | Flat Back | Yes | - |
| 543-705-02 | Metric | 12.7mm | 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | M2.5 X 0.45 | 0.4 to 0.7N | Lug Back | - | Yes |
| 543-705B-02 | Metric | 12.7mm | 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | M2.5 X 0.45 | 0.4 to 0.7N | Flat Back | - | Yes |
| 543-706-02 | Inch | 0.5" / 12.7mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | 4-48 UNF | 0.4 to 0.7N | Lug Back | - | Yes |
| 543-706B-02 | Inch | 0.5" / 12.7mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | 4-48 UNF | 0.4 to 0.7N | Flat Back | - | Yes |
| 543-707-02 | Metric | 0.5" / 12.7mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.00012" / ±0.003mm | M2.5 X 0.45 | 0.4 to 0.7N | Lug Back | Yes | - |
| 543-707B-02 | Metric | 0.5" / 12.7mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.00012" / ±0.003mm | M2.5 X 0.45 | 0.4 to 0.7N | Flat Back | Yes | - |
| 543-710-02 | Metric | 12.7mm | 0.01mm | - | ±0.02mm | M2.5 X 0.45 | 0.9 or lessN | Lug Back | - | Yes |
| 543-710B-02 | Metric | 12.7mm | 0.01mm | - | ±0.02mm | M2.5 X 0.45 | 0.9 or lessN | Flat Back | - | Yes |
| 543-711-02 | Inch | 0.5" / 12.7mm | 0.0005" / 0.01mm | - | ±0.02mm | M2.5 X 0.45 | 0.9 or lessN | Lug Back | - | Yes |
| 543-711B-02 | Inch | 0.5" / 12.7mm | 0.0005" / 0.01mm | - | ±0.02mm | M2.5 X 0.45 | 0.9 or lessN | Flat Back | - | Yes |
| 543-712-02 | Inch | 0.5" / 12.7mm | 0.0005" / 0.01mm | - | ±0.0010" | 4-48 UNF | 0.9 or lessN | Lug Back | Yes | - |
| 543-712B-02 | Inch | 0.5" / 12.7mm | 0.0005" / 0.01mm | - | ±0.0010" | 4-48 UNF | 0.9 or lessN | Flat Back | Yes | - |
| 543-715-02 | Metric | 12.7mm | 0.01mm | - | ±0.02mm | M2.5 X 0.45 | 0.2 to 0.5N | Lug Back | - | Yes |
| 543-715B-02 | Metric | 12.7mm | 0.01mm | - | ±0.02mm | M2.5 X 0.45 | 0.2 to 0.5N | Flat Back | - | Yes |
| 543-716-02 | Inch | 0.5" / 12.7mm | 0.0005" / 0.01mm | - | ±0.02mm | 4-48 UNF | 0.2 to 0.5N | Lug Back | - | Yes |
| 543-716B-02 | Inch | 0.5" / 12.7mm | 0.0005" / 0.01mm | - | ±0.02mm | 4-48 UNF | 0.2 to 0.5N | Flat Back | - | Yes |
| 543-717-02 | Inch | 0.5" / 12.7mm | 0.0005" / 0.01mm | - | ±0.0010" | M2.5 X 0.45 | 0.2 to 0.5N | Lug Back | Yes | - |
| 543-717B-02 | Inch | 0.5" / 12.7mm | 0.0005" / 0.01mm | - | ±0.0010" | M2.5 X 0.45 | 0.2 to 0.5N | Flat Back | Yes | - |
| 543-720B-02 | Metric | 25.4mm | 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | M2.5 X 0.45 | 1.8 or lessN | Flat Back | - | Yes |
| 543-721B-02 | Inch | 1" / 25.4mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.003mm | M2.5 X 0.45 | 1.8 or lessN | Flat Back | - | Yes |
| 543-722B-02 | Inch | 1" / 25.4mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | - | ±0.00012" | 4-48 UNF | 1.8 or lessN | Flat Back | Yes | - |
| 543-725B-02 | Metric | 25.4mm | 0.01mm | - | ±0.02mm | M2.5 X 0.45 | 1.8 or lessN | Flat Back | - | Yes |
| 543-726B-02 | Inch | 1" / 25.4mm | 0.0005" / 0.01mm | - | ±0.02mm | 4-48 UNF | 1.8 or lessN | Flat Back | - | Yes |
| 543-727B-02 | Inch | 1" / 25.4mm | 0.0005" / 0.01mm | - | ±0.0010" | M2.5 X 0.45 | 1.8 or lessN | Flat Back | - | - |
| 543-730B-02 | Metric | 50.8mm | 0.0005mm/0.001mm/0.01mm | Yes | ±0.005mm | M2.5 X 0.45 | 2.3 or lessN | Flat Back | - | Yes |
| 543-731B-02 | Inch | 2" / 50.8mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.005mm | M2.5 X 0.45 | 2.3 or lessN | Flat Back | - | Yes |
| 543-732B-02 | Inch | 2" / 50.8mm | 0.00002"/0.00005"/0.0001"/0.0005" / 0.0005mm/0.001mm/0.01mm | Yes | ±0.00020" | 4-48 UNF | 2.3 or lessN | Flat Back | Yes | - |
| 543-735B-02 | Metric | 50.8mm | 0.01mm | - | ±0.04mm | M2.5 X 0.45 | 2.3 or lessN | Flat Back | - | Yes |
| 543-736B-02 | Inch | 2" / 50.8mm | 0.0005" / 0.01mm | - | ±0.04mm | 4-48 UNF | 2.3 or lessN | Flat Back | - | Yes |
| 543-737B-02 | Inch | 2" / 50.8mm | 0.0005" / 0.01mm | - | ±0.0015" | M2.5 X 0.45 | 2.3 or lessN | Flat Back | Yes | - |
