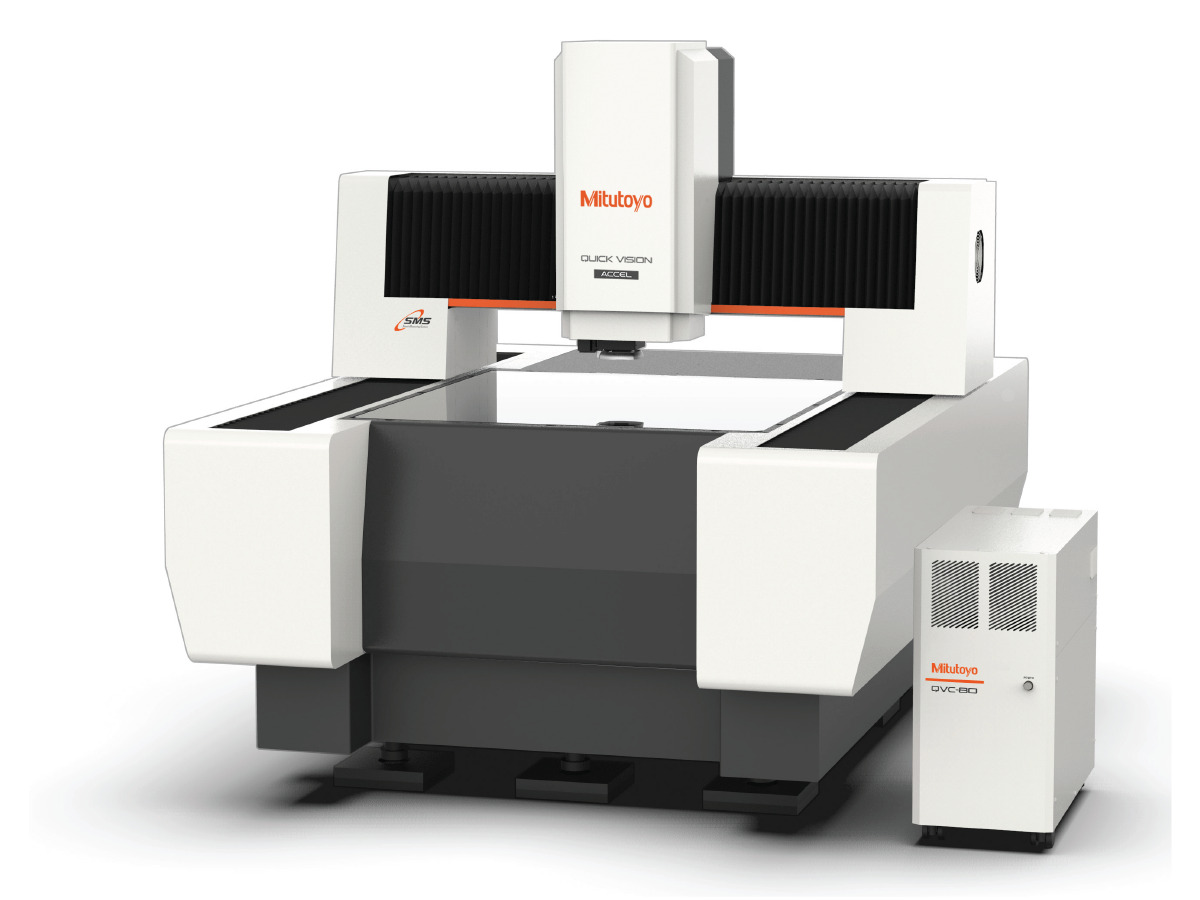

The Mitutoyo Quick Vision ACCEL CNC Vision Measuring System was designed with a primary focus on measurement speed and efficiency. The machine drives the X- and Y- axes at 400 mm/s.

Download Brochure
Features & Benefits

The Mitutoyo Quick Vision ACCEL Vision Measuring System is optimal for measurements of large format parts such as printed circuit boards whose density and resolution continue to increase, as well as metal masks and screen plates. The Quick Vision ACCEL is also optimal for measurements on glass circuit boards, film and other components of display panels and is suited to measure thin and light-weight workpieces and workpieces with short life cycles.

  • The moving-bridge type structure eliminates the need for a moving stage to facilitate a simplified design of the workpiece fixture reducing man-hours required for fixture fabrication and inspection
  • QV ACCEL performs highly accurate height measurements using functional edge detection and image auto focus
  • Pattern focus function performs auto focusing even on transparent objects such as film and glass
  • A Programmable Ring Light (PRL) allows for fine control and direction for optimal measurement illumination to enhance the edge of inclined surfaces and very small steps
  • Optional Tracking Auto Focus (TAF) maintains focus while measuring across warped part surfaces
SERIES 363 TECHNICAL DATA
Technology: CNC VMM
Environment: 68°F
20°C
Rate of Change Per Hour: ±1°C / ±1.8°F
Camera Type: B&W CCD
Field of View: 0.0016 x 0.0012 - 0.4937 x 0.3701" / 0.04 x 0.03 - 12.54 x 9.4mm
Zoom Type: Internal Turret
Magnification: 16x - 4800x
Illumination System: -
Touch Trigger Probe: No
Color Lighting: No
Optical 3D Scanning (PFF): Optional
Laser Tracking Autofocus (TAF): No
Vibration Stand: Optional
Range Z-Axis: 6" / 150mm
PRODUCT LIST
Order No.: Model: Range X-Axis: Range Y-Axis: Workpiece Max Load: Mass (incl. stand and controller): Dimensions:
363-315-10Y QV-A808P1L-D (Accel 808) 31" / 800mm 31" / 800mm 22lbs / 10kg 4520lbs / 2050kgs 58 x 73 x 62" (1475 x 1860 x 1578mm)
363-335-10Y QV-A1010P1L-D (Accel 1010) 39" / 1000mm 39" / 1000mm 66lbs / 30kg 6505lbs / 2950kgs 75 x 83 x 63" (1912 x 2116 x 1603mm)
