Quick Vision Apex Pro

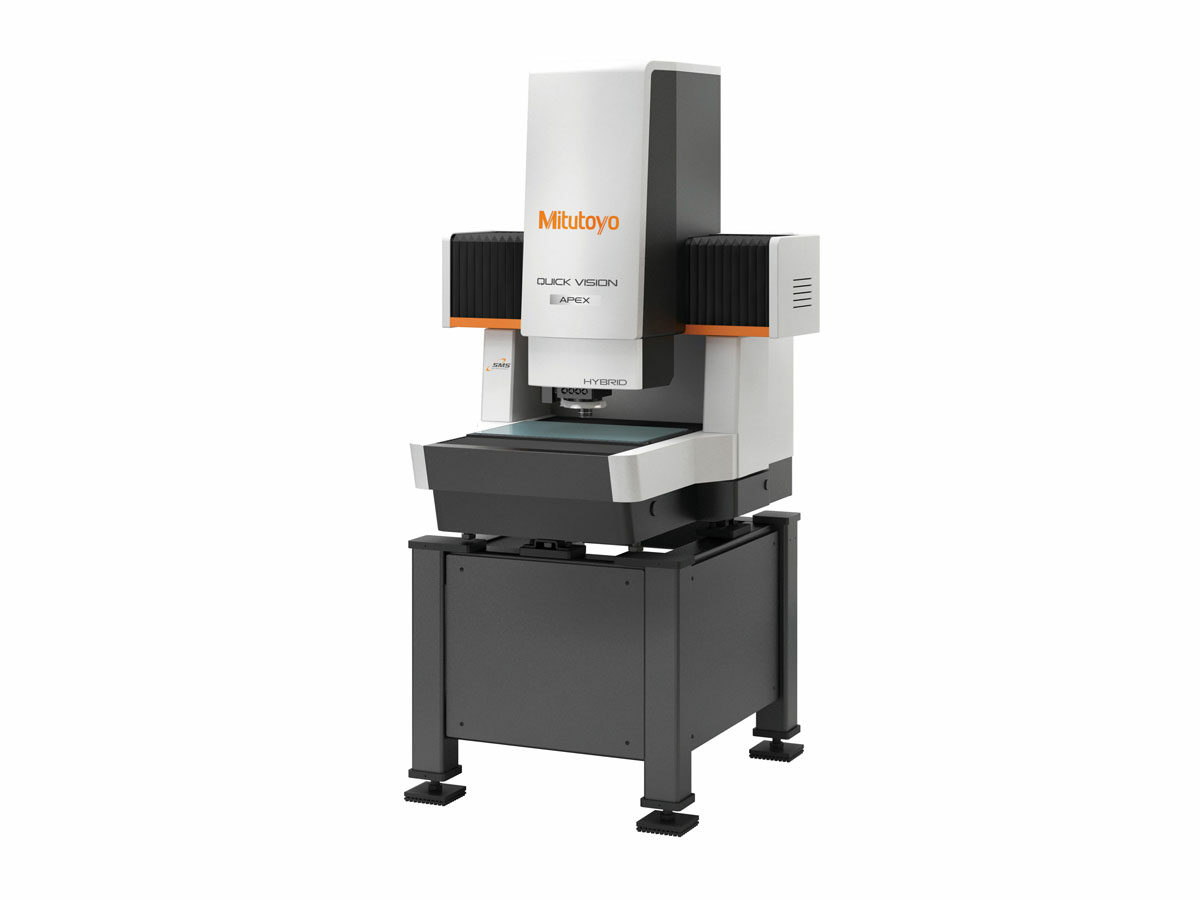

The Mitutoyo Quick Vision Apex Pro is a high-accuracy CNC vision measuring system equipped with the new StrobeSnab function for high-speed, accurate measurements for a variety of applications.


Download Brochure
Features & Benefits

The floor-standing Mitutoyo Quick Vision Apex Pro CNC vision measuring system completes demanding tasks in vision-based measurement and features a choice of accuracy specifications. An image multi-autofocus feature helps select the optimal focus for each surface texture for optimal edge detection, and the camera motion and strobe light are synchronized to make non-stop vision measurements without stopping the stage. The Quick Vision Apex Pro Series enables contact and non-contact measurements on the same machine. This is achieved using a camera for non-contact measurements and a touch-trigger probe for contact measurements

  • Strobesnap reduces measurement times for most measurement samples regardless of measurement position continuity by approximately 35 to 45%
  • Strobesnap is highly compatible with part programs, allowing you to create high-speed measurement part programs with simple operations
  • The optional Stream function realizes amazingly high throughput by non-stop measurement that synchronizes the main unit drive with the strobe lighting
  • Optional Tracking Auto Focus (TAF) quickly focuses on the contours and warpage of a workpiece’s surface, improving throughput significantly
  • A Programmable Ring Light (PRL) allows for fine control and direction for optimal measurement illumination to enhance the edge of inclined surfaces and very small steps
  • Pattern focusing helps measure low-contrast surfaces with more accuracy
  • Programmable zoom automatically changes focus between 1X, 2X and 6X for highly detailed images and measurement
  • The accuracy of this model conforms to ISO10360-7:2011 (specifications on request)
Technology: CNC VMM
Scale Resolution: 0.000003937" / 0.0001mm
Environment: 68°F / 20°C
Camera Type: B&W CMOS
Field of View: 0.0016 x 0.0012 - 0.4937 x 0.3701" / 0.04 x 0.03 - 12.54 x 9.4mm
Zoom Type: Internal Turret
Magnification: 16x - 4800x
Touch Trigger Probe: Optional
Color Lighting: Optional
Optical 3D Scanning (PFF): Optional
Laser Tracking Autofocus (TAF): Optional
Stream: Optional
Vibration Stand: Optional
Order No.: Model: Range X-Axis: Range Y-Axis: Range Z-Axis: Workpiece Max Load: Mass (incl. stand and controller): Dimensions:
363-601 QV-X302P1L-E (Apex 302 Pro) 12" / 300mm 8" / 200mm 8" / 200mm 44lbs / 20kg 44lbs / 20kgs 37 x 34 x 41" (930 x 866 x 1047mm)
363-611 QV-X404P1L-E (Apex 404 Pro) 16" / 400mm 16" / 400mm 10" / 250mm 88lbs / 40kg 88lbs / 40kgs 56 x 44 x 54" (1426 x 1118 x 1381mm)
363-621 QV-X606P1L-E (Apex 606 Pro) 24" / 600mm 26" / 650mm 10" / 250mm 110lbs / 50kg 110lbs / 50kgs 79 x 55 x 62" (1994 x 1400 x 1572mm)
